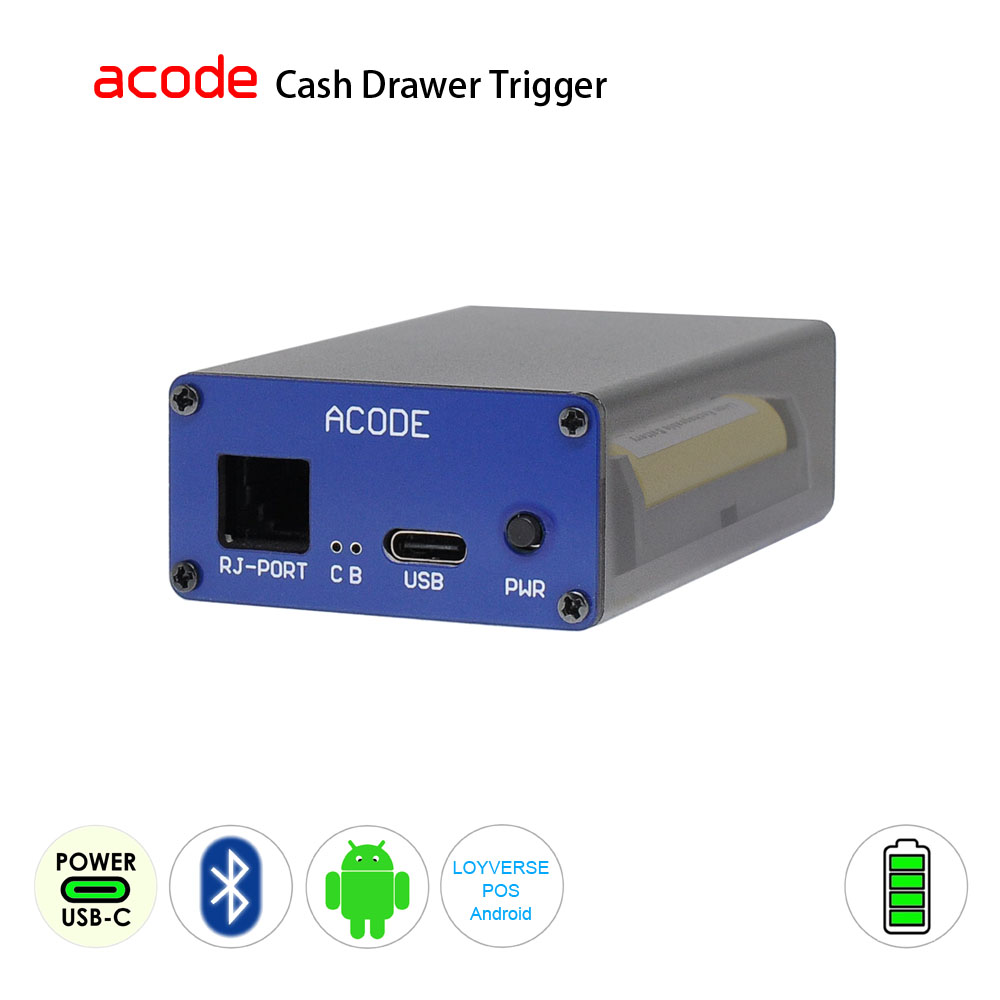

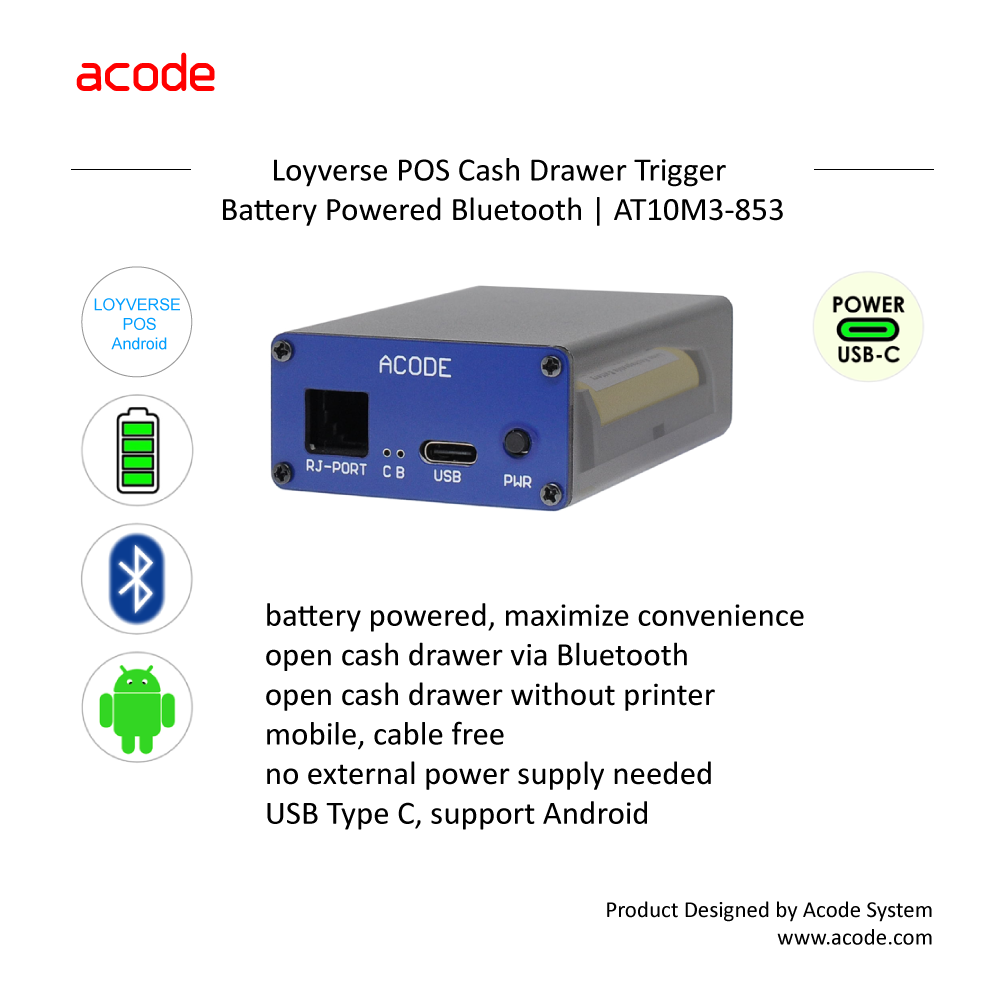

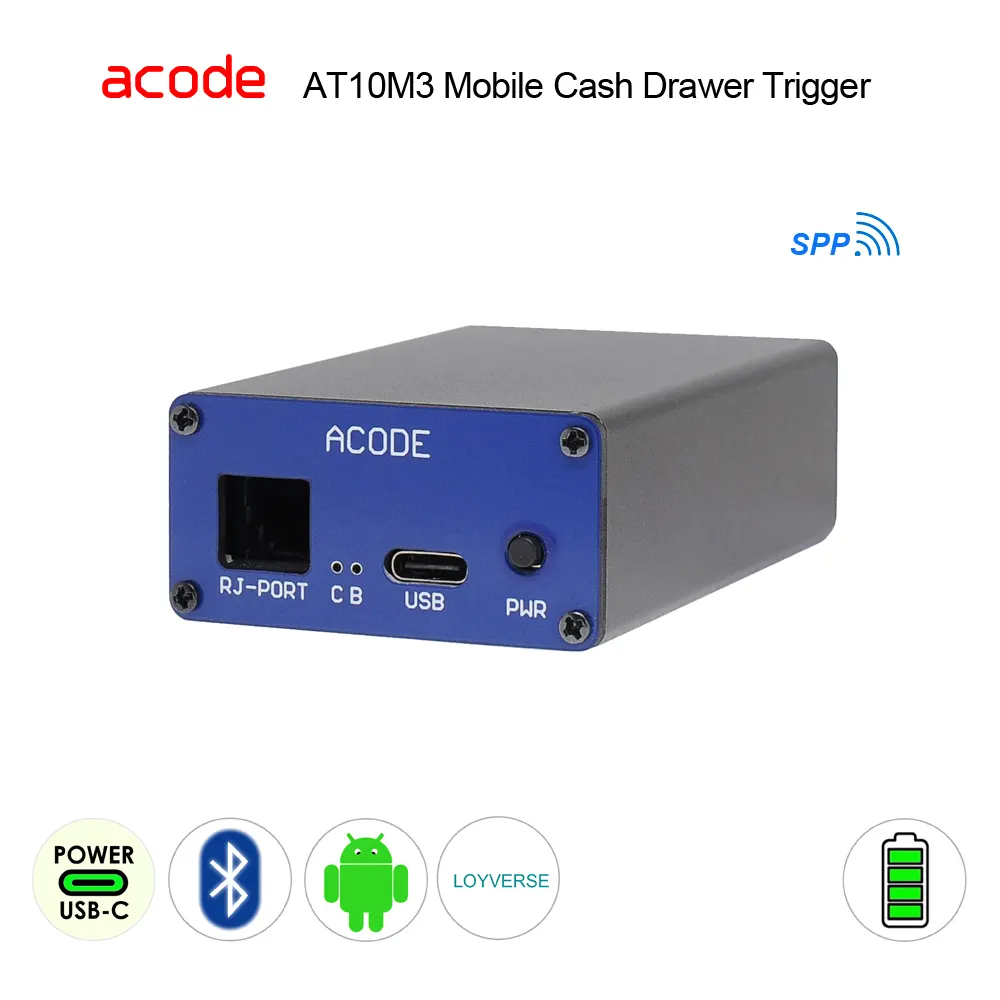

AT10M3-85313 Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POS Android

Mobile, Cable Free Bluetooth Cash Drawer Trigger for Loyverse POS

AT10M3-85313 Battery Operated Bluetooth Cash Drawer Trigger

battery operated, open cash drawer via bluetooth connection

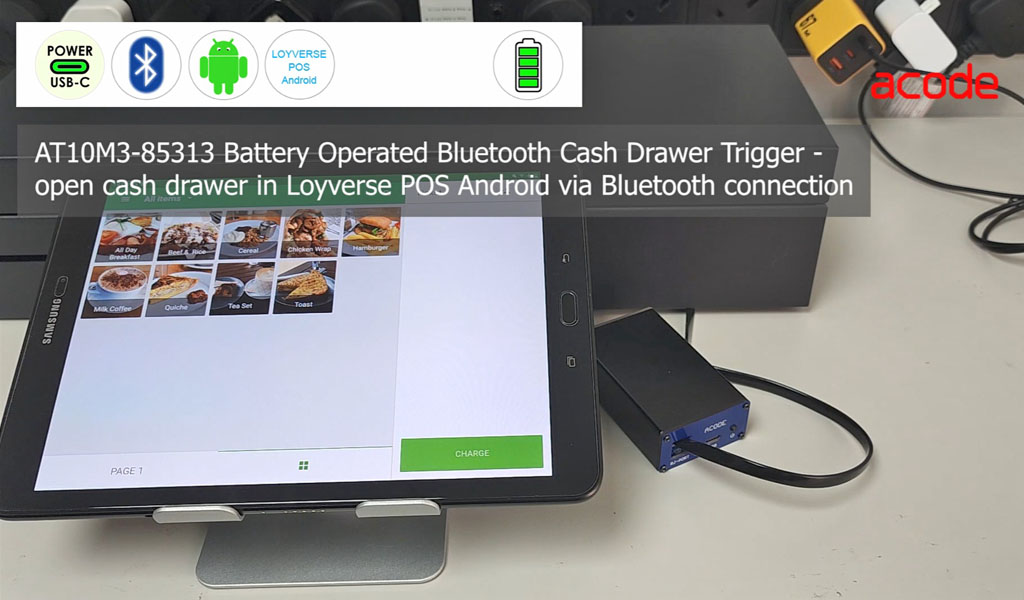

  • open cash drawer via bluetooth connection in Loyverse POS Android
  • open cash drawer without receipt printer / receipt printing
  • 2 ways to provide power to the cash drawer trigger :
    1) 14500 rechargeable battery OR
    2) via USB C cable
  • at the same time, open cash drawer and recharge low level battery
  • AT10M3 Series Battery Operated Cash Drawer Trigger is designed to resolve the problem of power bank shutting down automatically due to minimal power usage

Key Feature | power system of the AT10M3 Series Battery Operated Series Cash Drawer Trigger

  • the Battery Operated Cash Drawer Trigger features an efficient, low power design and uses a high-efficiency 14500 rechargeable battery
  • it can be recharged using a power bank (with a 14500 battery inside) or an external 5V USB power source
  • AT10M3 Series Battery Operated Cash Drawer Trigger was developed to address the issue of power banks automatically shutting down due to the low power consumption and provide a solution
  • it uses a replaceable AA type 3.7V rechargeable battery, ensuring continuous operation and easy battery replacement

How it works :

  • If battery level is low, recharge battery using a power bank (with a 14500 battery inside) or an external 5V USB power source, it will recharge low battery and provide power to the Battery Operated Cash Drawer Trigger at the same time. There will be no interruptions to your business operation.
  • When the battery is fully charged, the standby time of the Battery Operated Cash Drawer Trigger is about 4 ~ 5 days, cash drawer open/close cycle is about 2,000 to 3,000 times (performance may vary depending on battery conditions). Charging and operation can be done at the same time.
  • You can simultaneously open cash drawer via bluetooth and recharge the low battery, business operation will remain unaffected.

Additional :

  • International Delivery : ship worldwide via Express Air / Regular Air / Surface
  • Payment : prices in USD, accept payment via PayPal
  • DO NOT ship to P.O. Box
Enquiry

Video

AT10M3-85313-40000 Battery Operated Bluetooth Cash Drawer Trigger for Loyverse POS Android
battery operated
open cash drawer via bluetooth connection
greater mobility and convenience

Data Sheet

Model # AT10M3-85313-40000
battery operated bluetooth cash drawer trigger for Loyverse POS
open cash drawer via bluetooth
Connectivity bluetooth serial, SPP pairing
Power USB Type-C, DC5V, <500mA
Supported OS Android
Power Input Battery Powered – Rechargeable Battery 14500 Li-ion [Lithium-ion]
Battery Requirement : Type/Size : 14500
Battery Protected
Battery Cell Capacity Rated : 850mAh
Nominal Voltage : 3.7V
Full Charge Voltage : 4.2V
Electronically Protected : Required
Rechargeable : Required
Remarks : Batteries NOT Included.
DO NOT use regular alkaline batteries.
For Cash Drawer Type 12~24 Volts, <1.5A, RJ12 (support RJ11), default to fit cash drawer PIN 2,4 and PIN 4,5
USB Cable Default : USB Type A to C
Optional : USB Type C to C
Housing aluminium
Colour black
Weight 95g net (without battery and cable)
Dimension 93x50x25mm DWH
Remarks :
Batteries NOT Included.
DO NOT use regular alkaline batteries.
Specifications are subject to change without prior notice.
